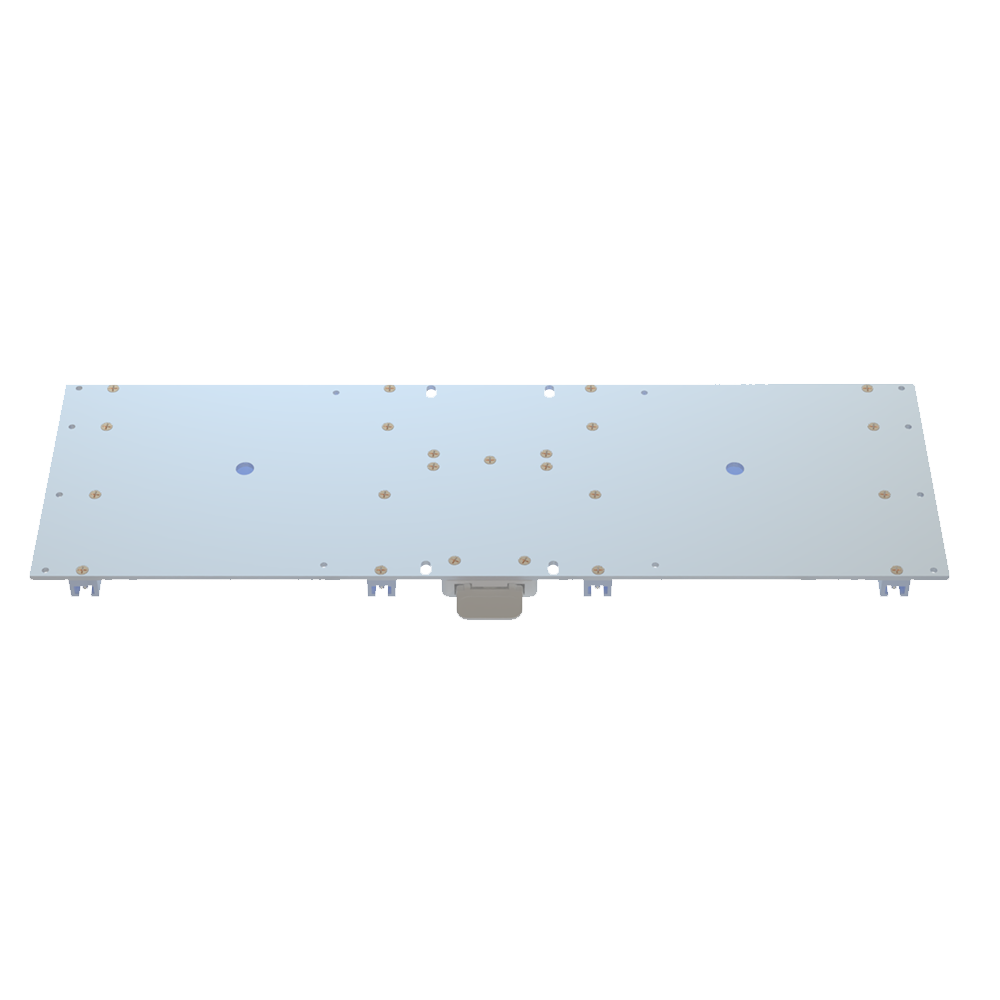

Low Profile Adjustable Seat Slide, 11-1/8” X 36"

M20-3611

Introducing the new Low Profile Adjustable Seat Slide 11-1/8" X 36"! Designed for helm chairs and benches 41" to 54" wide, this seat slide features a travel distance of up to 3-5/8" with five adjustable positions. Its high-strength polymer glides create a smooth, rattle free design. Quickly and easily adjust seats using the front-mounted activation paddle handle, which is always accessible in all five positions.

Features and Benefits

  • Meets ABYC H31 testing standards
  • Precision-machined 6000-series aluminum chassis
  • Double pin positive side lock
  • High-strength polymer glides provide self-lubricated, rattle-free, smooth operation
  • Features five adjustable, equally spaced positions with 3-5/8” of travel
  • Secure fit with universal mounting bolt pattern on box applications
  • Front activation paddle that slides with the seat for ease of use
  • Ideal for seats 41" to 54” wide
  • Ideal seat length/depth is 12" to 14"
  • Made in the USA
  • 3-year limited warranty
  • PRODUCT DETAIL
  • SPEC SHEET
  • Feedback

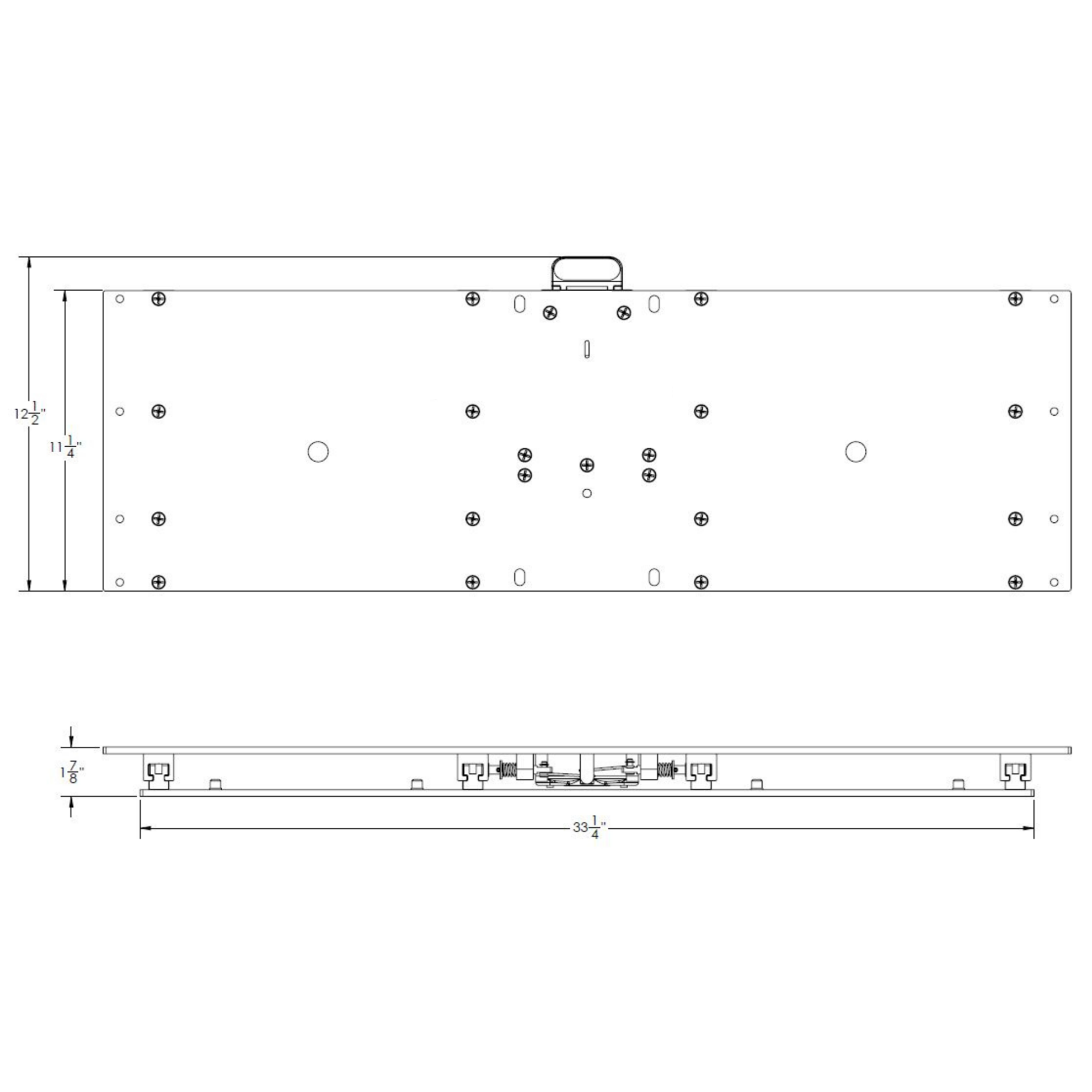

Part NumberDescriptionHeightLengthWidthWeightIdeal Seat Length/Depth
M20-3611LOW PROFILE ADJUSTABLE SEAT SLIDE, 11-1/8” X 36"1.85"12.43"36"22.36 lbs.12" to 14"
