Electric Low Profile Adjustable Seat Slide, 13-1/8" X 36"

Seating Store / Seat Slides

Introducing a fully electric Low Profile Adjustable Seat Slide! Perfect for seats 41" to 54" wide, this 13-1/8" X 36" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.

Features and Benefits

  • Ideal for seats 41" to 54"

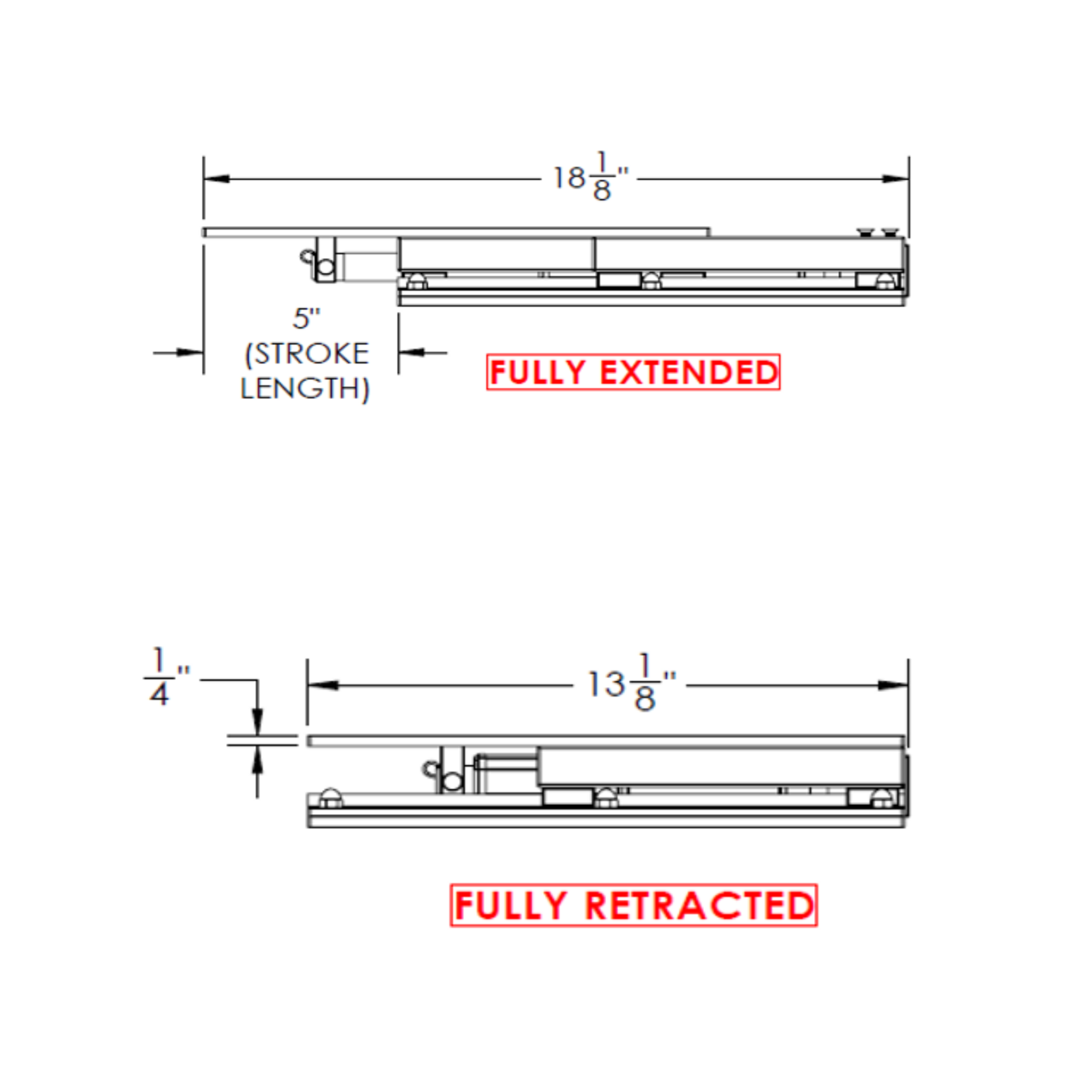

  • Features 5" of travel distance (stroke length)
  • Meets H31 testing standards for seat applications
  • Precision-machined 6000-series aluminum chassis
  • Rail/Linear Glide system are self-lubricating, dirt resistant, quiet, corrosion free, light weight and shock resistant
  • Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
  • Quite operation ≤ 58dB
  • Electric actuator
  • Self-locking at any given position (at rated loads)
  • No racking in any direction due to precision tolerances in the track/glide system
  • All electric seat slides and components are acid etched clear anodized
  • Made in the USA
  • 3-year limited warranty
Motor Specifications
  • 12V DC 9 AMP Max current
  • Max load 3500N
  • Push and pull force of 1500N
  • IP66 Rated
  • Speed 13.5 mm/Sec @ 1500N

If you are not satisfied with your purchase, please fill out a return form for a return authorization. Returns are valid within 30 days of purchase and are subject to inspection. Material must be returned in original packaging for a full credit. Subject to a 20 percent restock fee and pre-paid shipping. For purchases outside of the Continental United States, all sales are final.

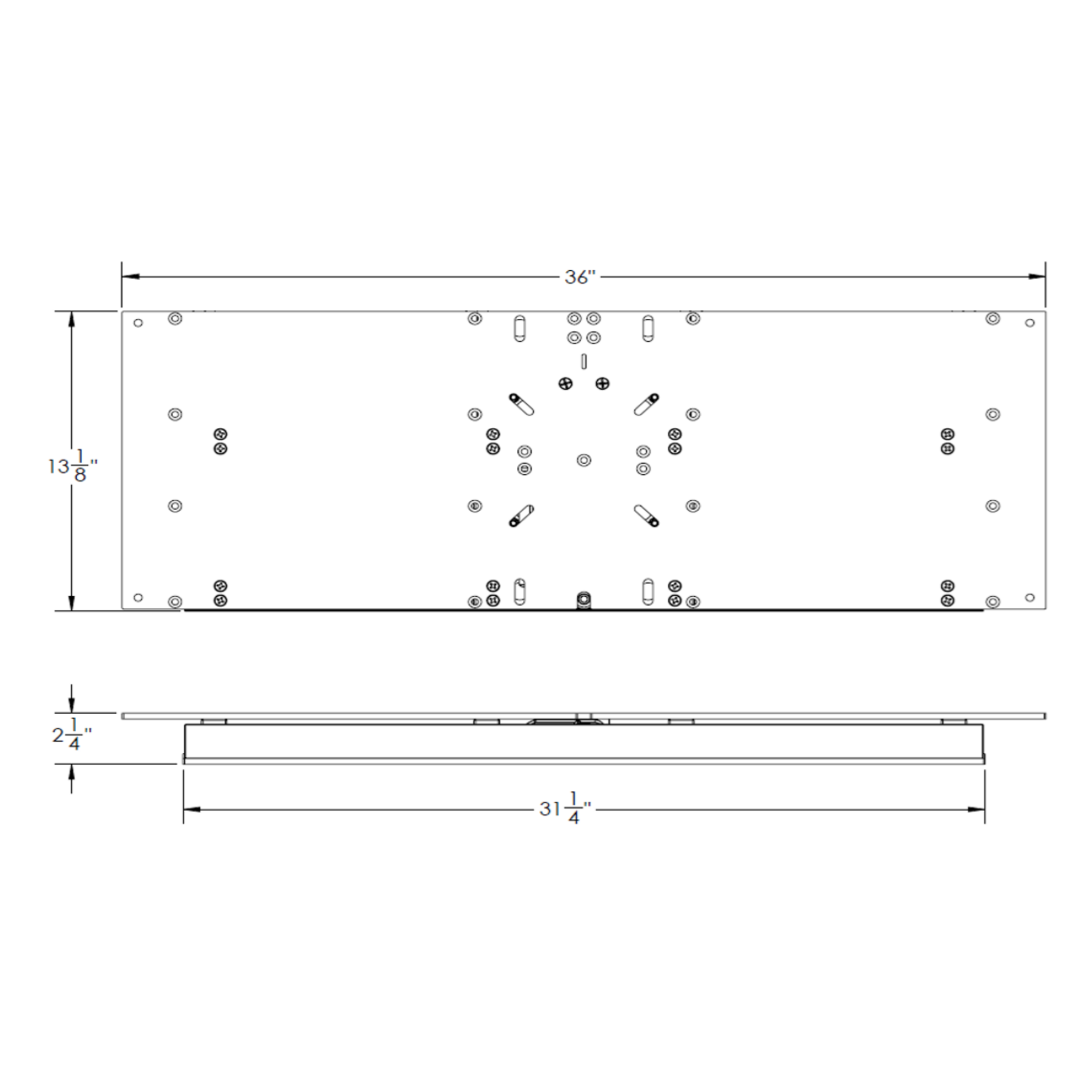

Part Number Description Length Width Height Power Max Load Push/Pull IP Rating
M20-3613E Seat Slide, Electric 36"WX13"LX2.25" 13-1/8" 36" 2-1/4" 12V DC 9AMP 3500N 1500N 66
